FCC Climator

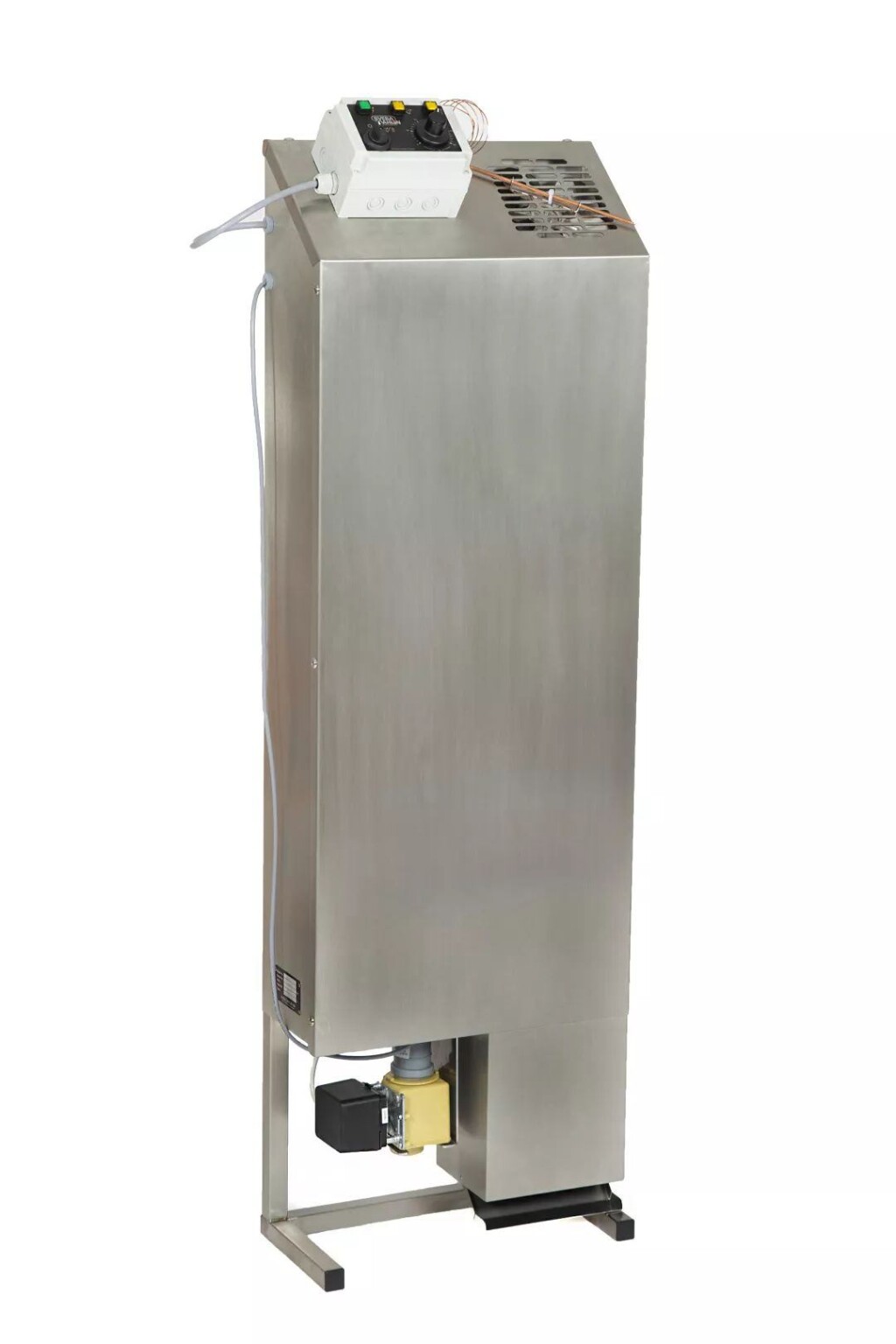

Climator unit FCC is used for self-built proofing boxes, equipped with independent heating and humidifying systems, as well as an independent adjustment system. Air exchange creates a circulating airflow, ensuring optimal temperature and humidity inside the proofing box.
Climator unit FCC made of stainless steel and is equipped with a special electronic steam control system, ensuring long-term stable operation, durability, and ease of use.
The temperature and humidity can be turned on or off as needed.
Ensure the optimal temperature and humidity inside the proofing box.
The FCC is equipped with a special electronic steam control system.
The abortion proofing device can be selected based on the proofing volume and the volume of the proofing box. Multiple proofing devices can be connected in parallel for central control.

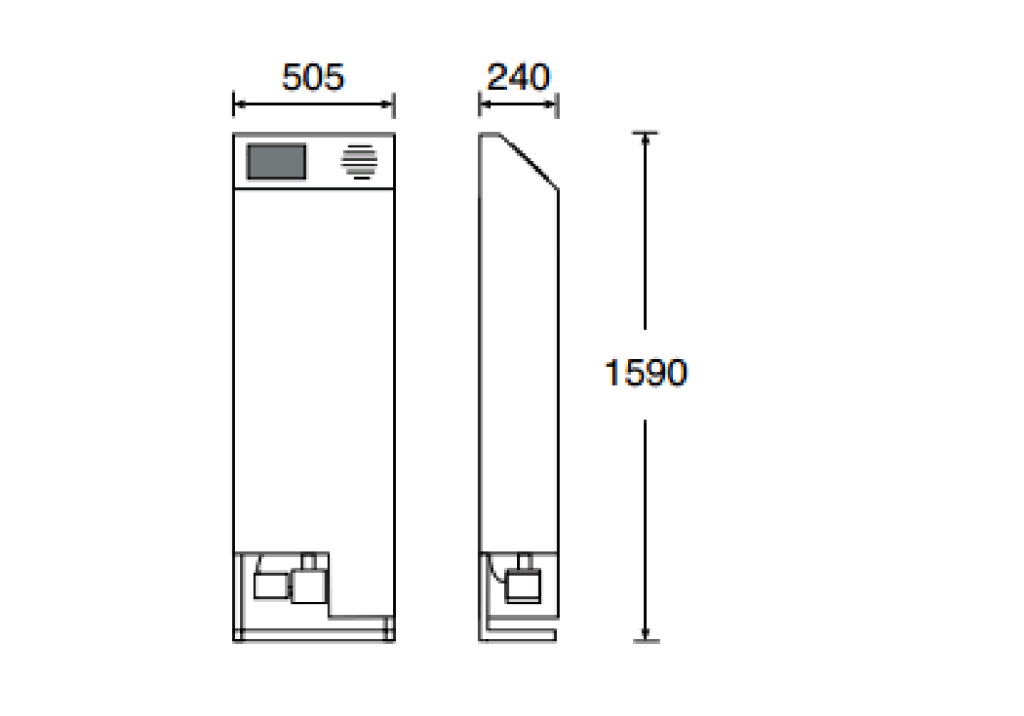

Technical information
| MODEL | FCC1 | FCC2 | FCC3 | FCC4 |
Steam capacity for rooms up to | 10㎡ | 20㎡ | 30㎡ | 40㎡ |
EI.Load | 6kw | 12kw | 18kw | 24kw |
Humidity range: from ambient humidity to 95%
Temperature range: from ambient temperature to 50°C

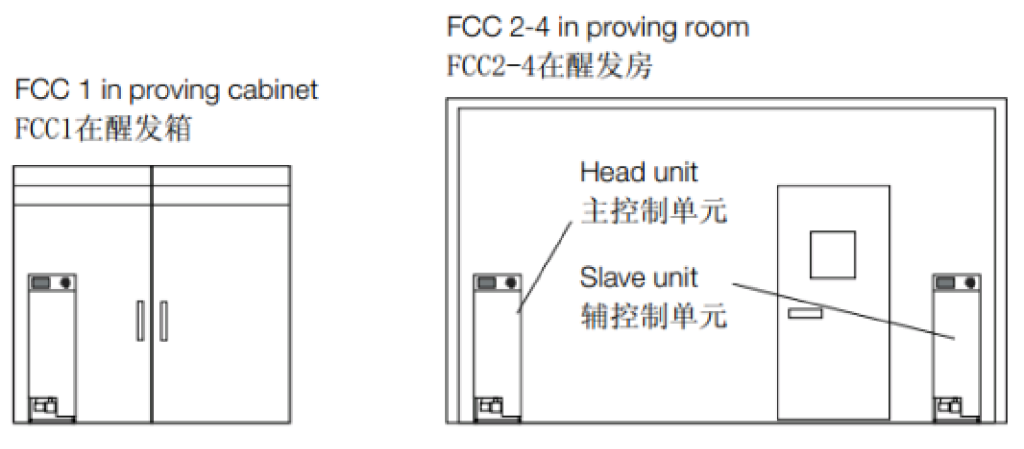

FCC2-4 consists of 1 main control unit and 1-3 auxiliary control units.
